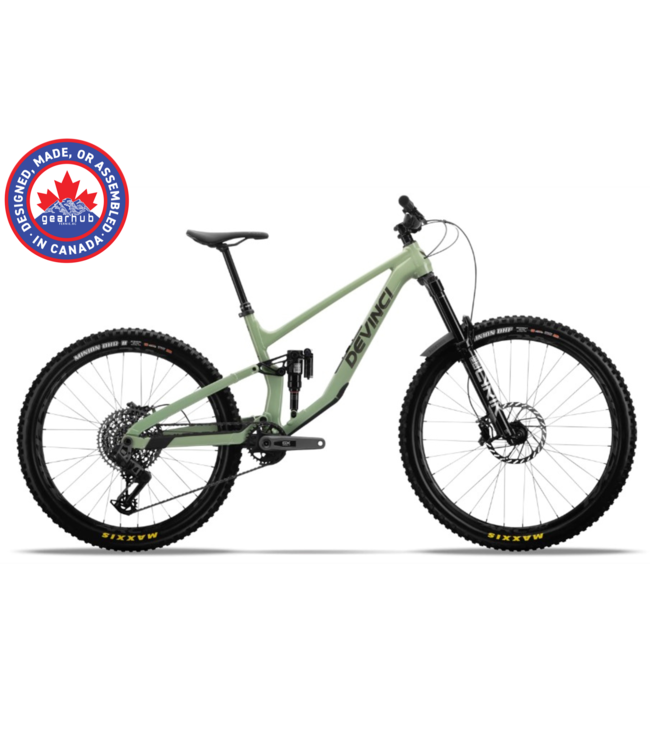

Devinci, Troy MX GX AXS

WHITE-HOT CANADIAN SPEED.

The everyday crusher of all trails. This Troy is our most advanced aluminum frame yet. But don’t let its handsmooth welds, streamlined profile and internal routing fool you. More than ever, Troy is built to shred. It has an updated geometry with size-specific chainstay lengths and comes stock with mixed wheels. It has more travel (150mm), so you’ll be looking for challenges instead of excuses. And its new ‘shed’ storage compartment in the downtube lets you pack all you need, without the need for a pack. Our quiver killer has a new set of instincts. And they’re backed by a lifetime warranty. Take one for a ride and see how far you can push it. You might never come back.

Handcrafted in Canada
Designed & Assembled in Canada

Tech Specs:

• FRAMEAluminum Optimum G04
• HEADSETFSA Orbit | 1.5 | Zero Stack
• SEAT CLAMPAlloy CNC | 34.9mm
• SUSPENSION FORKRockshox Lyrik Ultimate DB | 29 | 160 | 110x15 | 44OS |Black
• REAR SHOCKRockShox SuperDeluxe Ultimate 185x55T
• HANDLEBARRaceFace ERA 35 | B:35mm | R:40mm | W:800mm
• STEMRaceFace Turbine R35 | B:35mm | L:40mm | 0°
• SADDLESDG BELAIR 3.0
• SEATPOSTSDG Tellis 31.6mm
• SEATPOST LEVERSDG Tellis | Matchmaker | 1x Lever
• GRIPSDevinci Performance | w/lock-on
• FRONT BRAKESRAM Code Silver
• REAR BRAKESRAM Code Silver
• FRONT ROTORSRAM HS2 | 200mm
• REAR ROTORSRAM HS2 | 200mm
• REAR DERAILLEURSRAM GX Eagle AXS | T-Type | 12s
• REAR SHIFTERSRAM AXS POD | 12s
• CRANKSETSRAM GX Eagle AXS | T-Type | 32T | 1Guard | Boost 148
• CRANKSETSRAM GX Eagle AXS | TType | 32T | 1Guard | Boost 148 | 170mm
• BOTTOM BRACKETSRAM DUB 73mm Threaded
• CASSETTESRAM XS1275 | T-TYPE | 12s | 10-52T
• CHAINSRAM GX | T-Type | 12s
• FRONT RIMRaceFace ARC30 29 | 30mm inner | TR
• FRONT HUBRaceFace Vault | 6bolts | TA 15x110mm
• REAR HUBRaceFace Vault | Boost148x12 | XD | 6bolts
• REAR HUBRaceFace Vault | Boost 148x12 | XD | 6bolts
• REAR RIMRaceFace ARC30 27.5 | 30mm inner | TR
• SPOKESSapim Stainless 14G w/Nylok
• FRONT TIREMaxxis Minion DHF | 29x2.5WT | 3C | DD | TR | MaxxTerra
• REAR TIREMaxxis Minion DHR II | 27.5x2.5WT | 3C | DD | TR | MaxxTerra

• Weight - 16.05 kg / 35.38 lb

  *For a size medium complete bike, weight approximate and subject to change.

  Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.



  Frame Specs:

  Rear travel	150 mm
  Front travel	160 mm
  Rear tire clearance	27,5'' x 2.6” / 29'' x 2.5''
  Rear hub spacing	12 x 148 Boost
  Max & min chainring clearance	Max. 34T | Min. 28T
  Chainline	55 mm
  Derailleur hanger	UDH™
  Caliper mount	200 mm Post Mount
  Seat tube diameter	31.6 mm ID / 34.9 mm OD
  Seatpost max insertion	S → 240 mm / M → 280 mm / L → 305 mm / XL → 330 mm
  Headset	Top ZS44 | Bottom ZS56
  Cable routing	Internal
  Rear shock dimension	Trunnion | 185 x 55 mm
  Rear shock hardware	Top: NA | Bottom: 40 x 10 mm
  Linkage bearing type	Enduro™ double-lip sealed
  Fork dimensions (Axle-to-Crown measurement/Offset)	571 mm / 44 mm
  Chain guide mount	ISCG 05 – 3-Bolt
  Frame material	Aluminum 6061-T6 | Optimum G04





  ROCK SHOX ULTIMATE SERIES

  Offering maximum adjustability and featuring the latest innovations in damper technology, RockShox’s Ultimate series represents the pinnacle of the suspension manufacturer’s lineup. The Troy GX AXS is equipped with the Lyrik Ultimate fork, which includes the 3.1 Charger damper, ButterCups, and the DebonAir+ air spring. At the rear, RockShox’s Super Deluxe Ultimate with Linear XL Air Can takes care of rear shock duties, delivering incredible traction, tunability, and control.





  MIXED WHEELS

  The Troy comes stock with mixed wheels. Get all the snappy handling of 27.5" with the added traction, rollover and momentum of a 29" wheel up front. Still prefer full 29? The Geo-Saver mullet flip chip located at the lower mount of the shock lets you rock a 29’’ rear wheel without sacrificing the bike’s intended geometry.



  TECHNOLOGIES:



  MADE IN CANADA FRAME

  Proudly made here. Each frame that bears our Made in Canada stamp represents our commitment to quality and sustainability.







  Optimum G04 6061-T6 Aluminum frame

  Made from 6061-T6 aluminum tubesets for superior durability, incredible stiffness, and a knockout strength-to-weight ratio exclusive to Devinci bikes. The Optimum G04 designation appears on our high-end mountain bikes and electric mountain bikes.

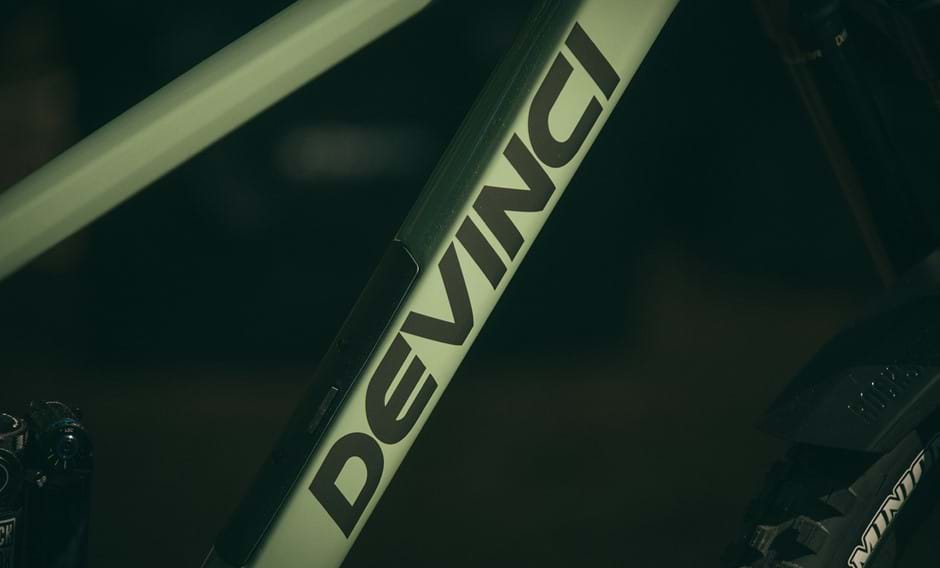

  Lifetime warranty

  The love of riding lasts a lifetime. Now your bike can too.





  Updated Geometry

  The improved geometry makes the Troy more capable than ever. Featuring a slacker head angle for confidently tackling technical sections, while a steeper seat tube angle helps you motor up the climbs.





  Split Pivot

  Separates acceleration forces from braking forces for a buttery smooth ride with hyperactive small bump compliance, plus increased traction and podium-crushing pedal stroke efficiency.





  Geo-Saver Mullet Flip Chip

  The flip chip allows for the use of either a 27.5'' or 29'' rear wheel without altering the bike's geometry.

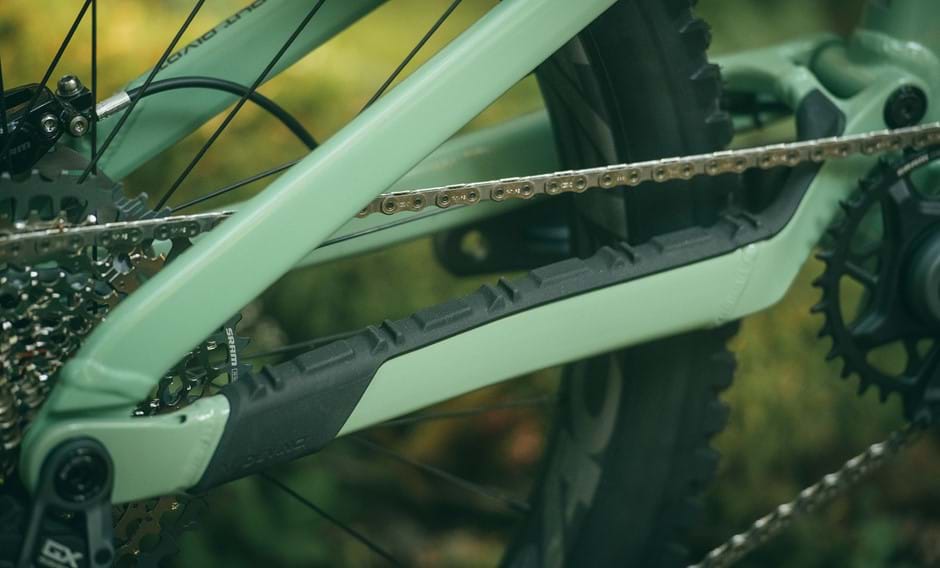

  Rider optimized chainstay length

  Shorter chainstays on sizes S and M and longer chainstays on sizes L and XL for a fully balanced ride feel on the trail, while size-specific front triangles improve stability and handling.



  432mm on S - M

  442mm on L - XL





  SHED storage system

  Never leave your must-haves at home again. The all-new in-frame storage system lets you bring everything you need on every ride without having to carry it on your back. The Shed storage system lets you store tubes, tools, and snacks in your frame.





  Internal cable routing

  The overall chassis aesthetics are kept clean and discreet while protecting cables and housings.





  Enduro™ bearings

  Enduro™ double-lip sealed bearings for precision movement and superior longevity.





  Double row linkage bearings

  For optimal rigidity and durability, a double-row bearing system at certain strategic pivot points of the frame.

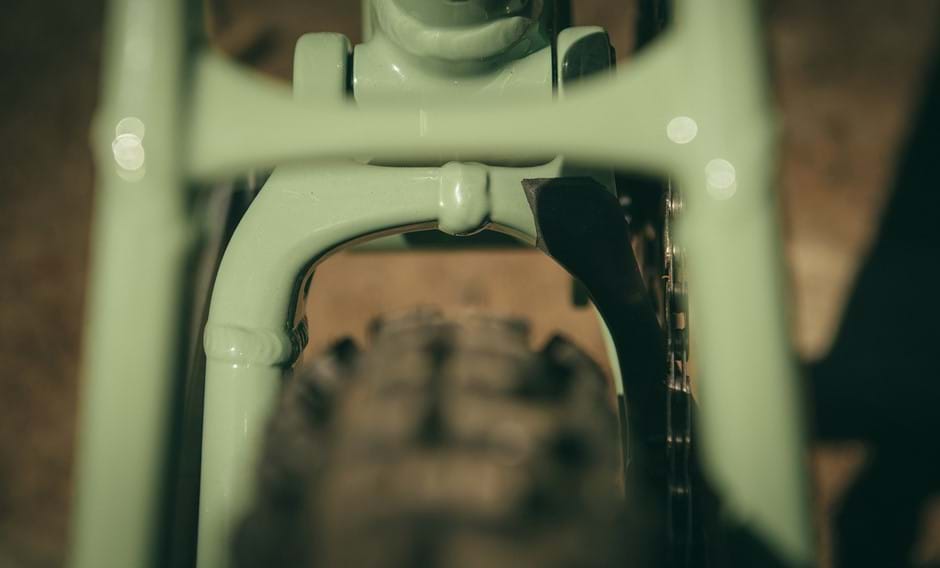

  Maximum rear tire clearance

  29'' x 2.5'' | 27.5'' x 2.6''





  Threaded BB

  Threaded BB for headache-free removal and easy maintenance.

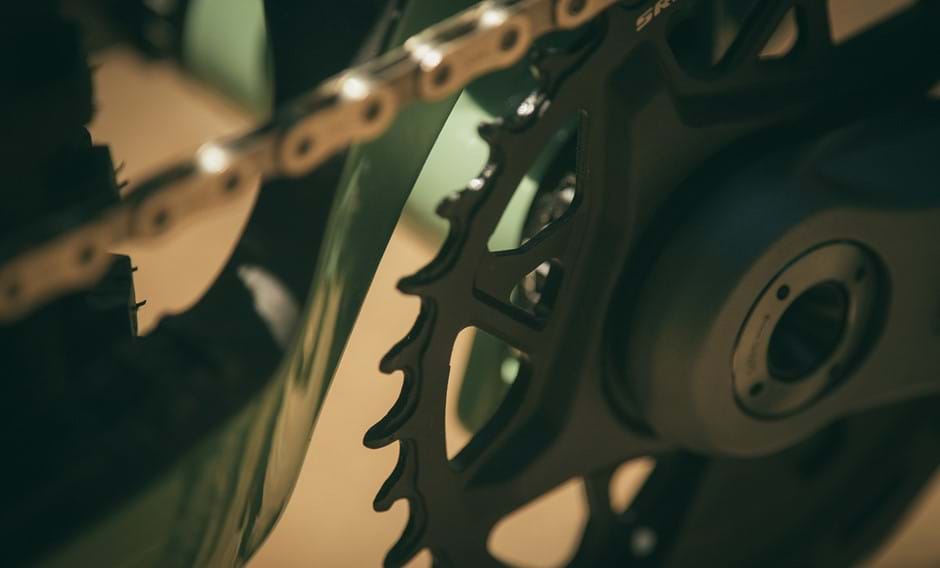

  Chainring clearance

  Min 28T / Max 34T





  3 bolts ISCG mount

  Get-gnarly chain guide fortified for on-trail use and abuse.





  Frame protectors

  The chainstay and the lower part of the downtube are protected to enhance durability of the frame for the rugged ride ahead.





  31.6 mm seat post

  S:150 mm | M:180 mm | L:200 mm | XL:220 mm

  Max insertion length:

  S : 240 mm

  M : 280 mm

  L : 305 mm

  XL : 330 mm





  Coil Shock Compatible

  All Devinci full suspension bikes have a progressive leverage ratio that works well when paired with a coil shock.





  Metric rear shock with Trunnion mount

  A more compact design that contributes to improving the performance and suppleness of the suspension thanks to bearing mounting.





  No-spacer Trunnion mounting

  For a hassle-free assembly, no additional spacers are needed for mounting the shock.





  Universal derailleur hanger UDH™

  Reduces the risk of damaging your derailleur, simplifies sourcing replacement parts when needed, and is compatible with SRAM's Transmission drivetrains.





  Standard Boost 148

  Boost 148 design with a 55 mm chainline that offers ample tire clearance.





  Room for a bottle

  All frame sizes have clearance for at least a 500 ml bottle with a rear shock with a reservoir.
