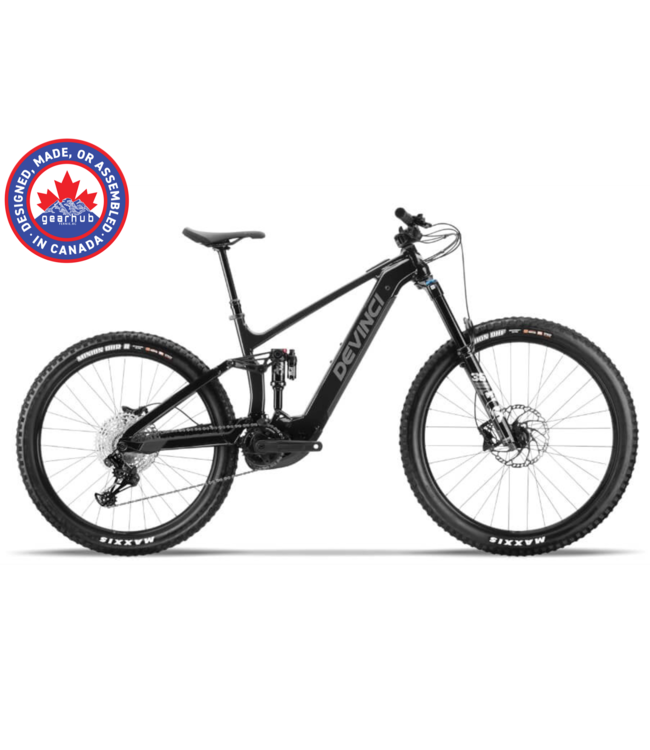

Devinci, E-Troy Bosch CX Smart NX

E-ALL MOUNTAIN - Handcrafted in Canada

See what happens when maximum output meets legendary all-mountain capability with the new E-Troy. Everything about the E-Troy was designed with power in mind. The suspension kinematics, dedicated mixed wheel configuration and true MTB geometry create a riding experience that feels immediately familiar and startlingly potent. Don’t settle for e-bikes that let a motor drag you around the trails. Take control of your ride and go further than ever with the made-in-Canada E-Troy.

Tech Specs:

• FRAME - Aluminum Optimum G04
• HEADSET - FSA Orbit | 1.5 | Zero Stack
• SEAT CLAMP - Alloy CNC | 34.9mm
• SUSPENSION FORK - Fox 36 Performance E-Tuned Grip 160 | 51 Offset
• REAR SHOCK - Fox Float X Performance Series Evol LV |0.4 Spacer| 185x55T
• HANDLEBAR - V2 Pro E | B:35mm | R:15mm | W:780mm
• STEM - V2 Pro | B:35mm | L:50mm | 0°
• SADDLE - SDG BELAIR Max eMTB
• SEATPOST - TranzX Dropper 31.6mm 1xLever
• SEATPOST - TranzX Dropper | 31.6mm | 1x Lever
• GRIPS - Devinci Performance | w/lock-on
• FRONT BRAKE - SRAM G2 R | 4 Pistons
• REAR BRAKE - SRAM G2 R | 4 Pistons
• ROTORS - SRAM Centerline | 200mm
• REAR DERAILLEUR - SRAM NX Eagle | 12s
• REAR SHIFTER - SRAM SX Eagle | 12s
• CRANKARM - FSA CK-762 Bosch
• CHAINRING - Sram X-Sync Eagle 34T EMTB
• CASSETTE - SRAM PG1210-12s 11-50T
• CHAIN - SRAM SX Eagle | 12s
• CHAIN GUIDE - GN4 Mini Guide
• FRONT RIM - V2 Comp 29 | 29mm inner | TR
• FRONT HUB - Novatec D791SB-B15 | 6bolts | TA 15x110mm
• REAR HUB - Formula EHL-148 | Sealed | 6bolts |TA 12x148mm | HG
• REAR RIM - V2 Comp 27.5 | 29mm inner | TR
• SPOKES - Sapim Stainless 14G w/Nylok
• FRONT TIRE - Maxxis Minion DHF | 29x2.6WT | Exo+ | 3C | TR | MaxxTerra
• REAR TIRE - Maxxis Minion DHRII | 27.5x2.6 | 3C | Exo+ | TR | MaxxTerra
• COMPUTER - BOSCH System controller BRC3100
• DRIVE UNIT - BOSCH Performance Line CX | 85Nm
• DRIVE UNIT - BOSCH Performance Line CX | 85Nm
• DRIVE UNIT - BOSCH Performance Line CX | 85Nm | Gen4
• BATTERY - BOSCH PowerTube | 625Wh

• Weight - 24.90 kg / 54.90 lb

  *For a size medium complete bike, weight approximate and subject to change.

  Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.



  TECHNOLOGIES:

  MADE IN CANADA ALUMINUM FRAME

  Made from 6061-T6 aluminum tubes for superior durability, incredible stiffness and a knockout strength-to-weight ratio exclusive to Devinci bikes.







  DEDICATED MIXED-WHEEL SIZE DESIGN

  Get all the snappy handling of 27.5" with the added traction, rollover and momentum of a 29" wheel up front.





  27.5 X 2.6 MAXIMUM TIRE CLEARANCE

  27.5 x 2.6





  LIFETIME WARRANTY

  The love of riding lasts a lifetime. Now your bike can too.





  INTERNAL CABLE ROUTING





  BOSCH MOTOR

  The Performance Line CX motor is one of the most advanced e-bike motors on the market. It combines a powerful dynamic drive system with efficient power management. You get the most from your motor for the whole ride, every ride.





  STANDARD BOOST 148

  Boost 148 design with a 55 mm chainline that offers ample tire clearance.





  REMOTE POWER SWITCH

  The thumb-actuated Mini Remote lets you adjust power settings without changing your hand position. The remote is connected to the system controller via Bluetooth, making it easy to mount it where you want.





  NEW 625WH BATTERY

  A long-lasting and powerful 625Wh battery uses 18650 cell technology. Its rugged design is purpose-built for the rigours of mountain biking.





  DROPOUT SPEED SENSOR

  Clean, streamlined solution to clunky, outdated spoke magnets, with internalized cable routing.





  CHAINGUIDE-EQUIPPED

  Ultra-tough, lightweight chainguide for headache-free chain-holding security.





  FRAME PROTECTION

  Integrated high-density chain stay protectors deliver a silent ride and peace of mind while the nylon motor/battery protector keeps out rocks and debris.





  31.6 SEAT POST

  S → 125 | M → 150 | L → 170 | XL → 200
  Insertion length:
  S → 225 mm
  M → 250 mm
  L → 275 mm
  XL → 300 mm





  UPDATED GEOMETRY

  Modern trail bike geometry featuring a slacker head angle for confidently tackling technical sections, while the steeper seat tube angle helps you tackle the climbs.





  REMOVABLE BATTERY

  The dropdown style battery is easy to remove and is kept secure with a key lock.





  ENDURO™ BEARINGS

  Enduro™ double-lip sealed bearings for precision movement and superior longevity.





  UNIVERSAL DERAILLEUR HANGER

  Reduces the risk of destroying your derailleur and makes it easy to source replacement parts when you need them.





  4A SUPERCHARGER

  High-output charger delivers 80% charge in roughly 2 hours.





  E-MTB OPTIMIZED SPLIT PIVOT

  Separates acceleration forces from braking forces for a buttery smooth ride complemented by hyperactive small-bump compliance. Additionally, optimized kinematics keeps the e-bike suspension active, even when accelerating, for added torque and improved overall traction.





  BOSCH - eMTB MODE

  The eMTB mode provides targeted support for eMountain biking and always delivers power exactly when it's needed. Whether on steep sections or individual obstacles. This is precisely when it delivers up to 340% of the rider's own power and a maximum torque of 85 Nm.
