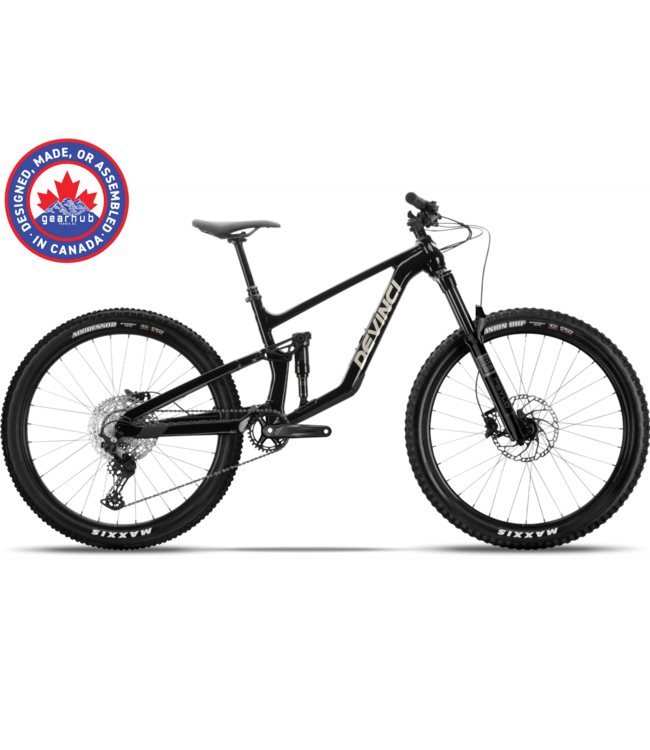

Devinci, Troy ST Deore 12s
C$3,699.00
Excl. tax
In stock (1)
- Article number:
- FV24081-A3-S
- EAN Code:
- 883385260265
- SKU:
- FV240812A3-PREORDER
- Delivery time:
- * This product is available at supplier's warehouse. Please allow an additional 5 - 10 days for processing.
LIGHTNING WITH A BOTTLE CAGE. - Handcrafted in Canada
The new Troy ST is the black belt in the Troy family. Insanely agile, the 130mm travel Split Pivot frame has updated geometry with size-specific chainstays that will have you riding stuff you thought
Read more..
* This product is available at supplier's warehouse. Please allow an additional 5 - 10 days for processing.
-
Free domestic shipping on orders over $349* & Competitive international shipping
-
AUS & NZ
Preferred rates and fast shipping -
LIGHTNING WITH A BOTTLE CAGE. - Handcrafted in Canada
The new Troy ST is the black belt in the Troy family. Insanely agile, the 130mm travel Split Pivot frame has updated geometry with size-specific chainstays that will have you riding stuff you thought you wouldn’t, fast. Its integrated downtube storage and go get ‘em attitude will lure you into all day rides on “once a year” trails, weekly. Full 29 in M-XL sizes and full 27.5 in XS-S, the ST isn’t trying to be anything it’s not. It’s made in Canada, guaranteed for life and ready to rumble. This bike is proof that with travel, sometimes less is more.
Tech Specs:
Frame
- HEADSET - FSA Orbit | 1.5 | Zero Stack
- SEAT CLAMP - Alloy CNC | 34.9mm
Suspension
- SUSPENSION FORK - RockShox Psylo Silver RC | 140mm | 44Offset | 1 Token
- REAR SHOCK - RockShox Deluxe Select 185x47.5 Trunnion
Cockpit
- HANDLEBAR - V2 Pro | B:35mm | R:25mm | W:780mm
- STEM - V2 Pro | B:35mm | L:50mm | 0°
- SADDLE - Devinci
- SEATPOST - TranzX Dropper | 31.6mm | 1x Lever
- GRIPS - Devinci Performance | w/lock-on
Brakes
- FRONT BRAKE - Shimano Deore M4100/MT410 | 2 Pistons
- REAR BRAKE - Shimano Deore M4100/MT410 | 2 Pistons
- FRONT ROTOR - Shimano RT66 | 203mm
- REAR ROTOR - Shimano RT66 | 203mm
Drivetrain
- REAR DERAILLEUR - Shimano Deore M6100 | 12s
- REAR SHIFTER - Shimano Deore M6100 | 12s | I-spec EV
- CRANKSET - Shimano MT5121 | 32T | 170mm
- BOTTOM BRACKET - Shimano BB MT501 | BSA | 68/73mm
- CASSETTE - Shimano Deore M6100 | 12s | 10-51T | Microspline
- CHAIN - KMC X12 | 12s
Wheels
- FRONT RIM - V2 Comp 27.5 | 29mm inner | TR
- FRONT HUB - Formula DC-711 | Sealed | 6bolts | TA 15x110mm
- REAR HUB - Formula MST-148 | Sealed | 6bolts | TA12x148mm | Microspline
- REAR RIM - V2 Comp 27.5 | 29mm inner | TR
- SPOKES - Sapim Stainless 14G w/Nylok
- FRONT TIRE - Maxxis Minion DHF | 27.5x2.5WT | EXO | TR | 3C
- REAR TIRE - Maxxis Aggressor | 27.5x2.5WT | EXO | TR | Dual Compound
Weight - 16.35 kg / 36.05 lb
*For a size medium complete bike, weight approximate and subject to change.
Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.
FRAME TECH SPECS
| Rear travel | 130 mm |
| Front travel | 140 mm |
| Rear tire clearance | 27,5'' x 2.6” / 29'' x 2.5'' |
| Rear hub spacing | 12 x 148 Boost |
| Max & min chainring clearance | Max. 34T | Min. 28T |
| Chainline | 55 mm |
| Derailleur hanger | UDH™ |
| Caliper mount | 200 mm Post Mount |
| Seat tube diameter | 31.6 mm ID / 34.9 mm OD |
| Seatpost max insertion | XS → 235 mm / S → 265 mm / M → 280 mm / L → 305 mm / XL → 330 mm |
| Headset | Top ZS44 | Bottom ZS56 |
| Cable routing | Internal |
| Rear shock dimension | Trunnion | 185 x 47.5 mm |
| Rear shock hardware | Top: NA | Bottom: 40 x 10 mm |
| Linkage bearing type | Enduro™ double-lip sealed |
| Fork dimensions (Axle-to-Crown measurement/Offset) | 551 mm / 44 mm (M, L, XL) 533 mm / 37 mm (XS, S) |
| Chain guide mount | ISCG 05 – 3-Bolt |
| Frame material | Aluminum 6061-T6 | Optimum G04 |
MADE IN CANADA FRAME
Proudly made here. Each frame that bears our Made in Canada stamp represents our commitment to quality and sustainability.
Optimum G04 6061-T6 Aluminum frame
Made from 6061-T6 aluminum tubesets for superior durability, incredible stiffness, and a knockout strength-to-weight ratio exclusive to Devinci bikes. The Optimum G04 designation appears on our high-end mountain bikes and electric mountain bikes.
Lifetime warranty
The love of riding lasts a lifetime. Now your bike can too.
Updated Geometry
The improved geometry makes the Troy more capable than ever. Featuring a slacker head angle for confidently tackling technical sections, while a steeper seat tube angle helps you motor up the climbs.
Split Pivot
Separates acceleration forces from braking forces for a buttery smooth ride with hyperactive small bump compliance, plus increased traction and podium-crushing pedal stroke efficiency.
Geo-Saver Mullet Flip Chip
The flip chip allows for the use of either a 27.5'' or 29'' rear wheel without altering the bike's geometry.
Rider optimized chainstay length
Shorter chainstays on sizes S and M and longer chainstays on sizes L and XL for a fully balanced ride feel on the trail, while size-specific front triangles improve stability and handling.
435mm on S - M
445mm on L - XL
SHED storage system
Never leave your must-haves at home again. The all-new in-frame storage system lets you bring everything you need on every ride without having to carry it on your back. The Shed storage system lets you store tubes, tools, and snacks in your frame.
Internal cable routing
The overall chassis aesthetics are kept clean and discreet while protecting cables and housings.
Enduro™ bearings
Enduro™ double-lip sealed bearings for precision movement and superior longevity.
Double row linkage bearings
For optimal rigidity and durability, a double-row bearing system at certain strategic pivot points of the frame.
Maximum rear tire clearance
29'' x 2.5'' | 27.5'' x 2.6''
Threaded BB
Threaded BB for headache-free removal and easy maintenance.
Chainring clearance
Min 28T / Max 34T
3 bolts ISCG mount
Get-gnarly chain guide fortified for on-trail use and abuse.
Frame protectors
The chainstay and the lower part of the downtube are protected to enhance durability of the frame for the rugged ride ahead.
31.6 mm seat post
S:150 mm | M:180 mm | L:200 mm | XL:220 mm
Max insertion length:
S : 240 mm
M : 280 mm
L : 305 mm
XL : 330 mm
Coil Shock Compatible
All Devinci full suspension bikes have a progressive leverage ratio that works well when paired with a coil shock.
Metric rear shock with Trunnion mount
A more compact design that contributes to improving the performance and suppleness of the suspension thanks to bearing mounting.
No-spacer Trunnion mounting
For a hassle-free assembly, no additional spacers are needed for mounting the shock.
Universal derailleur hanger UDH™
Reduces the risk of damaging your derailleur, simplifies sourcing replacement parts when needed, and is compatible with SRAM's Transmission drivetrains.
Standard Boost 148
Boost 148 design with a 55 mm chainline that offers ample tire clearance.
Room for a bottle
All frame sizes have clearance for at least a 500 ml bottle with a rear shock with a reservoir.
Tailored wheel sizes
The XS and S sizes feature 27.5-inch front and rear wheels to accommodate smaller riders, while the M, L, and XL sizes of the Troy ST are equipped with 29-inch wheels, creating a fully balanced feel from the ground up.
