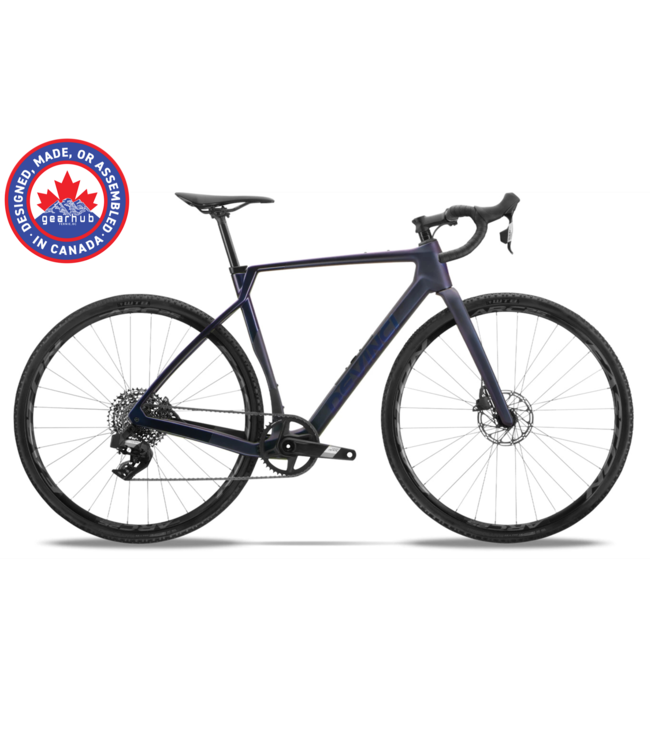

Devinci, Hatchet Pro Carbon Apex AXS 12s

GET AHEAD OF THE PACK - Designed & Assembled in Canada

Look fast standing still. And leave your pals in the dust once the wheels start turning. The completely redesigned Hatchet PRO is a streamlined gravel machine. Cut through headwinds on the sleek, aerodynamic frame that’s loaded with features like fully integrated cables and seat clamp. Tackle epics with thoroughbred efficiency and snappy handling. And on your longest days store enough calories for the whole crew in your downtube with the new Shed storage system.

Tech Specs:

FRAME-Carbon OSC

FRAME-Carbon OSC | Dual Core Fusion | SHED

FORK-Carbon OSC

FORK-Carbon OSC | Dual Core Fusion | SHED

HEADSET-Acros AIF-557 Integrated cable routing

SEAT CLAMP-Alloy CNC | 27.2mm

HANDLEBAR-V2 Pro | B:31.8mm | R:70mm | D:125mm | Flare 6°

STEM-V2 Pro | B:31.8mm | 6°

SADDLE-V2 Pro

SEATPOST-V2 Elite | 27.2mm

HANDLEBAR TAPE-Super Soft

FRONT BRAKE-SRAM Apex

REAR SHIFTER / BRAKE-SRAM Apex AXS | 12s

ROTORS-SRAM Centerline | Centerlock | 160mm

REAR DERAILLEUR-SRAM Apex | XPLR | AXS | 12s

CRANKSET-SRAM Apex 1 | 42T

BOTTOM BRACKET-DUB BB386 Road Wide

CASSETTE-SRAM PG1231 | XPLR | 12s | 11-44T | HG

CHAIN-SRAM APEX | FLAT TOP | 12s

FRONT RIM-Easton ARC25 700c | 25mm inner | TR

FRONT HUB-Shimano 105 R7070 | Centerlock | TA 12x100mm

REAR HUB-Shimano 105 R7070 | Centerlock | TA 12x142mm | SH

REAR RIM-Easton ARC25 700c | 25mm inner | TR

SPOKES-Sapim Stainless 14G w/Nylok

FRONT TIRE-WTB Resolute | 700x42 | TCS Light | Tan Sidewall

FRONT TIRE-WTB Resolute | 700x42 | TCS Light

REAR TIRE-WTB Resolute | 700x42 | TCS Light | Tan Sidewall

REAR TIRE-WTB Resolute | 700x42 | TCS Light

Weight - 9.05 kg / 19.95 lb

*For a size medium complete bike, weight approximate and subject to change.
Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.



Technologies:



FULL CARBON OSC FRAME

Devinci's Optimum-Strength Carbon (OSC) utilizes an advanced stiffness tuning process and a unique layup of high-strength and high-modulus carbon fibers to deliver exceptional stiffness and durability for premier performance.





Lifetime warranty

The love of riding lasts a lifetime. Now your bike can too.



Updated Geometry

The improved geometry makes the Hatchet PRO more capable than ever. A steeper head angle delivers enhanced responsiveness and precision.



Aerodynamic profile

Cut through the wind and your competition. Our refined tube design reduces drag and helps you fly over the roughest roads.



Full Carbon OSC Fork

The full-carbon fork of the Hatchet PRO is designed with the same intentions that define our OSC Carbon blend: optimal stiffness and exceptional durability. In terms of performance, its ultra-responsive feel will let you attack with full confidence.



Dual Core Fusion – All-Road Spec

Dual Core engineering strengthens the bottom half of the bike with a carbon blend and a dynamic tube shape design for better power transfer and lateral stiffness, while the top half design delivers compliance and comfort for improved overall handling.



Consistent stiffness across all frame sizes

Exceedingly responsive handling, no matter the rider's size or height, thanks to a size-specific carbon layup that promotes consistent stiffness across all frame sizes. Strategically placed high modulus fibres, paired with the perfect dosage of resin, maximize strength and rigidity.



Shed storage system

Never leave your must-haves at home again. The all-new in-frame storage system lets you bring everything you need on every ride without having to carry it on your back. The Shed storage system lets you store tubes, tools, and snacks in your frame.



Fully integrated cable routing

Sleek internal routing from the headtube to the chainstay keeps debris out to deliver long-lasting performance and creates a super-clean profile.



700c x 45 mm tire clearance

700c x 45 mm for capable mud ejection plus the traction you want when venturing off the pavement.



Universal Derailleur Hanger

Reduces the risk of damaging your derailleur and simplifies sourcing replacement parts when needed.



Integrated seat clamp

A streamlined seat clamp design that’s compatible with all 27.2 mm seatposts and dropper posts.



Headset bearings with internal protection sealing

Acros' IPS technology protects the headset bearings from water and the elements.



386 EVO Pressfit Bottom Bracket

Stiffest option with larger, more durable bearings while running standard 30 mm axle crankset.



Fork with capped axle

Streamlined fork with debris-shunning capped axle for fast, clean aesthetics.



Room for two bottles

All frame sizes can accommodate two bottles.



Compatible with SRAM Full Mount derailleur

Since the Hatchet Pro is equipped with a UDH hanger, it is also compatible with SRAM Full Mount derailleurs.



Front derailleur mount cover

For an ultra-clean aesthetic when using a 1x drivetrain.



Bento box mounts

Two mounts on the top tube to allow quick and secure installation of a frame bag.
